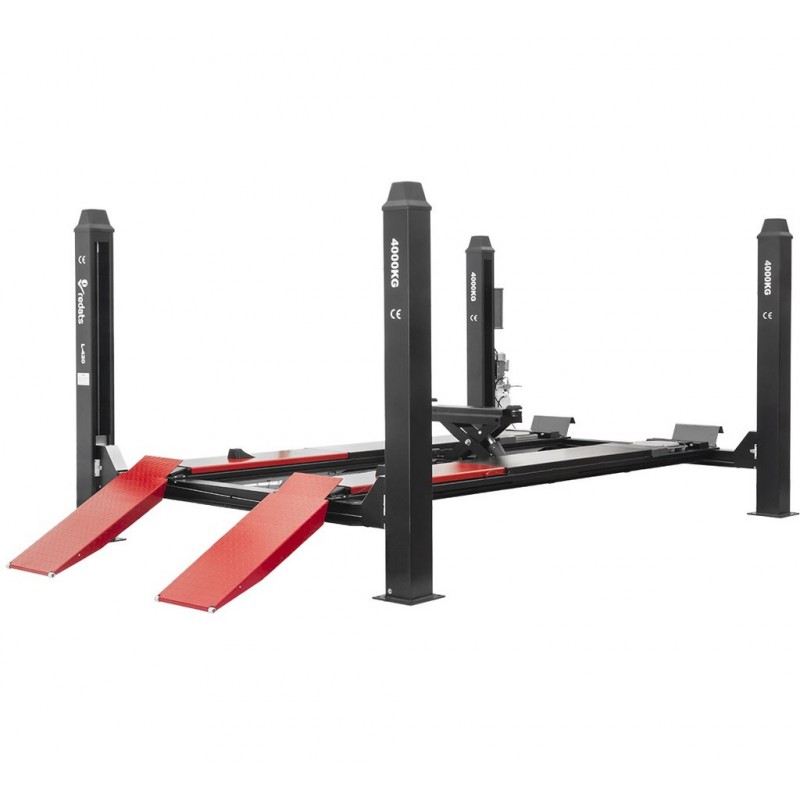

ᴿᴰ Pusiau automatinis keturių kolonų keltuvas L-420, 4 t (15-01-11, REDATS)

REDATS L-420 - essential information to tell your clients
Here’s the most important data about this lift:

capacity: 4 tons
Lifting height: 250 - 1750 mm
Time to full rise: ca. 50 seconds
Time to full lowering: ca. 50 seconds
Runway height (resting position): 200 mm
Ramp length (without runways): 4250 mm
Ramp setting: 800 - 950 mm
Motor pump
Type: Y90L
Power: 2.2KW
Voltage: 400V
Frequency: 50Hz

Why introduce this model to your offer?
This lift might be prepared for wheel alignment.

It will enable your clients to work on longer cars - overall ramp length (without runways): 4250 mm

It raises up to 1750 mm.

Runways prepared for wheel alignment
This REDATS L-420 lift can be used for wheel alignment. It has turntables, as well as central jacks for axles. Special covers allow for changing the position of the turntable or even hiding the hollow for turntables.

Setting the runways
Runways might be adjusted between 800 and 950 mm. The operator can easily set them for both cars with the narrow and wide wheel base. Plus to that, there are special chocks that prevent the car from rolling down the lift.

Designed for longevity
The lift structure is very reliable and stable. Runways are made of top-notch steel. There is no risk of bending or damages, even after years of use. Also, it is made of anti-slippery material, which increases safety.

Safe operations
There are special ratchet devices that get activated if the lift ever goes too high. This means, there is no risk it goes down out of a sudden lowering of the lift, when the pressure goes down. Also, there is a special safety valve that gets activated whenever the pressure gets too high.

Structure you can trust
The power is transferred from the actuator to the run-ways, through the steel ropes. This means less moving parts and longer trouble-free use.

Heavy-duty ropes
By default, the lift is fitted with heavy duty ropes – additional protection against breaking.
